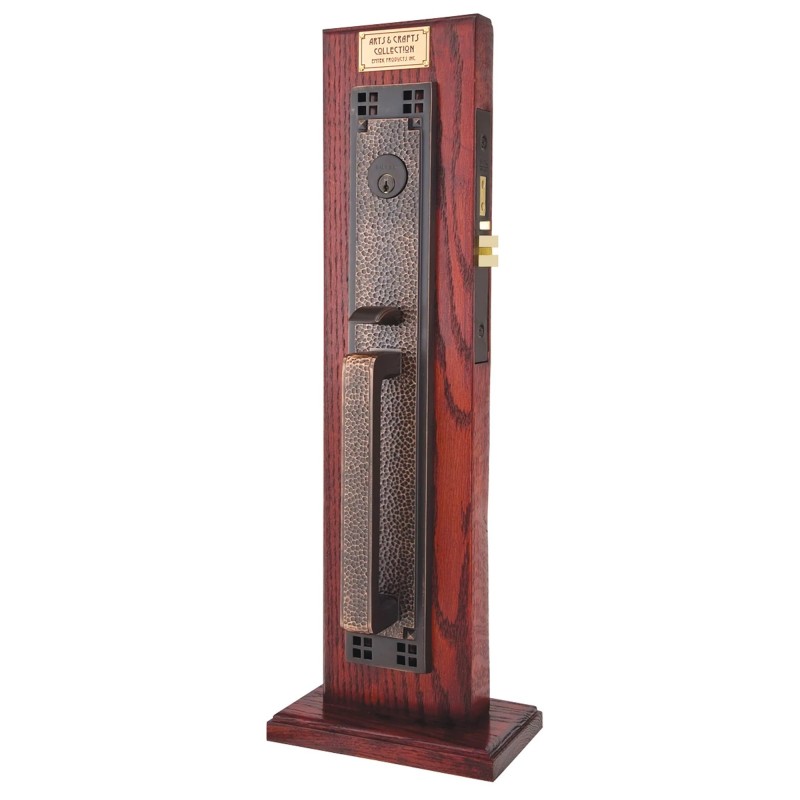

Emtek Craftsman Full Length Mortise Entry Set

  • New
Emtek Craftsman Full Length Mortise Entry Set
search
  • Emtek Craftsman Full Length Mortise Entry Set
  • Emtek Craftsman Full Length Mortise Entry Set
  • F13.3349.US10B
Function: F13 Mortise Lock
Exterior Finish: Oil Rubbed Bronze
Quantity

* Knob/Lever Style:
* Interior Finish
* Handing
* Door Swing:
* Keying
* Backset:
* Door Thickness

Emtek Craftsman Full Length mortise entry set features

Your Emtek Craftsman Full Length mortise entry set is made-to-order according to the options you select from above, allowing you to truly customize your home to your unique style and requirements. Emtek Craftsman Full Length mortise entry sets are manufactured from high quality, solid brass to yield a long-lasting hardware that produces an immediate upgrade to your home. Emtek Craftsman Full Length mortise entry sets are more than just a way to latch a door – they are stylish elements of décor.

Sold as a complete handleset

The Emtek Craftsman Full Length mortise entry set is supplied as a complete set with everything you need for one door.
The set includes:

  • Both exterior and interior handle trim assemblies
  • UL Listed mortise box with ANSI F20 or F13 function
  • Faceplate, strikeplate, and heavy-duty steel understrike
  • all necessary mounting screws and hardware
  • 5 pin Schlage-C type keyway lock cylinders are included standard
  • Two Keys

IMPORTANT Door Requirements for fitment

! Please check the installation guides and specifications to ensure this mortise entry set will fit your door ! A mortise lock will require the experience of a professional for installation in your door. The tools and skills required to install the mortise box cannot usually be undertaken by the average home-owner. All Emtek mortise entry sets require standard mortise door prep ANSI A115.1. You must select whether your door requires a 2-1/2" or 2-3/4" backset. If your door is thicker than 2", please specify. If your door is over 2-3/4" thick, contact us to verify this hardware will fit.

Customize it

Using the options above, select a function, finish, and other fitment details to create a custom handleset.
Functions:
F13 Mortise locks have a keyed-cylinder on the exterior side and a thumbturn on the inside. The F13 mortise operates in a similar manner to a typical residential entry handleset. It will ONLY lock by manual key operation on the exterior side or by manual thumbturn operation on the interior side. The F13 mortise does not automatically lock behind you when leaving.
F20 Mortise locks have a keyed-cylinder on the exterior side and a thumbturn on the inside. An F20 mortise will remain locked as you leave and shut the door behind you. There is a release button located on the faceplate that allows you to override the lock and temporarily put the mortise into passive mode. When in passive mode, the mortise does not stay locked and will only lock by manual operation of the key on the exterior, or by manual operation of the thumbturn on the interior. However, once you operate the lock (by key or by thumbturn), this resets the mortise box and it will no longer be in passive mode until you press the release button.
Dummy sets have no active locking or latching function. They are typically used on the inactive side of a double-door to give the complete appearance of an entry set on both doors - an active functioning set would be installed on one door, and a dummy set would would be installed on the other door.
Knobs/Levers: Emtek Craftsman Full Length entry sets can be ordered with ANY Emtek brass knob or lever for the interior side of your door. Check out the other knob and lever options.
Finishes: Emtek offers a large array of finish color choices to coordinate with the design and color schemes of your home. Emtek Polished Brass, Polished Nickel and Polished Chrome finishes are hand-buffed for maximum shine.
French Antique, Pewter, and Oil Rubbed Bronze finishes are hand relieved to give each part individual character
Emtek's Oil Rubbed Bronze finish is underlain with copper. Normal use will produce natural relief of the oxidized finish and reveal highlights on raised portions of the door handle design.

Split Styles: You can split the style, finish, or both on your Emtek Craftsman Full Length mortise entry sets. This means you can have a completely different finish color and/or rosette style on each side of a door. Contact us for further assistance with split style sets.

Solid brass quality

Emtek Craftsman Full Length mortise entry sets are forged (not cast or stamped) from solid brass to yield thick and heavy products for a truly solid look and feel. Emtek Craftsman Full Length mortise entry sets are supported by springs behind the rosette or backplate that will actively return the door handles back to their original neutral position to prevent sag. The interior knob or lever is connected to the trim plate and backplates with a permanent clip. Spindles are spring-loaded "half-spindles" pre-installed into the base of each door handle. Latch nose-bolts, strikeplates, and faceplates are solid brass. Latches are heavy-duty diecast construction with strong internal springs and solid brass nose bolts. A plastic bushing located in the joint between handle and rosette ensures a friction free wear surface - preventing metal from bearing on metal and provides smooth long-lasting operation. Each Emtek door handle has a set screw which, when tightened, eliminates wobbling of the door handle. The threaded tubes inside an Emtek lock are machined brass.

Summary of Emtek Warranty

Mechanical: All Emtek products* have a lifetime limited warranty against mechanical defects or failure.
(*All Emtek electronic products have a two-year warranty.)
Finish: Emtek Polished Brass-Lifetime and Polished Nickel-Lifetime finishes carry a lifetime finish warranty. There is NO warranty on all patina finishes: Flat Black patina, Medium Bronze patina, Tumbled White Bronze patina, and Unlacquered Brass finishes.
All other Emtek finishes carry a five-year finish warranty.

Contact Homestead Hardware for warranty claims.

FULL WARRANTY TEXT FROM THE MANUFACTURER

EMTEK

LIFETIME LIMITED WARRANTY

Subject to the terms and conditions of this warranty, Emtek Products ("Company") extends a lifetime limited warranty to the original consumer user (“Original User”) of our product (“Product”) against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed. *Electronic components warranted TWO (2) YEARS

This warranty only applies to the Original User of the Products. This warranty is not transferable. This warranty applies to all products sold on or after April 2, 2012.

Original User: The Original User will return the defective Product to the retailer from whom it was purchased, accompanied by a statement of defects and proof of purchase.

What Emtek will do: Upon return of the defective Product to Emtek for inspection, free and clear of all liens and encumbrances and accompanied by the statement of defects and proof of purchase, Emtek’s sole obligation, at its option, is to either repair or replace the Product, or refund the original retailer purchase price in exchange for the Product.

THE COMPANY MAKES NO OTHER WARRANTY OTHER THAN AS EXPRESSLY STATED HEREIN, AND ALL IMPLIED WARRANTIES, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY EXCLUDED.

THE COMPANY’S MAXIMUM LIABILITY HEREUNDER IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, INCIDENTAL OR SPECIAL AND/OR PUNITIVE DAMAGES OF ANY NATURE ARISING FROM THE SALE OR USE OF THE PRODUCT, WHETHER BASED ON CONTRACT, WARRANTY, TORT, STRICT LIABILITY, PATENT INFRINGEMENT, OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some local laws do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights and a buyer may also have other rights which may vary from state to state.

WHAT IS NOT COVERED: THE FOLLOWING COSTS, EXPENSES AND DAMAGES ARE NOT COVERED BY THE PROVISIONS OF THIS LIMITED WARRANTY: (I) LABOR COSTS INCLUDING, BUT NOT LIMITED TO, SUCH COSTS AS THE REMOVAL AND REINSTALLATION OF PRODUCT; AND (II) SHIPPING AND FREIGHT EXPENSES REQUIRED TO RETURN PRODUCT TO Emtek.

THE PROVISIONS OF THIS WARRANTY DO NOT APPLY TO PRODUCTS: (I) USED IN COMMERCIAL APPLICATIONS; (II) USED IN COMMON AREA APPLICATIONS; (III) USED FOR PURPOSES FOR WHICH THEY ARE NOT DESIGNED OR INTENDED; (IV) WHICH HAVE BEEN SUBJECTED TO ALTERATION, ABUSE, MISUSE, NEGLIGENCE OR ACCIDENT; (V) WHICH HAVE BEEN IMPROPERLY STORED, INSTALLED, MAINTAINED OR OPERATED; (VI) WHICH HAVE BEEN USED IN VIOLATION OF WRITTEN INSTRUCTIONS PROVIDED BY Emtek; (VII) WHICH HAVE BEEN SUBJECTED TO IMPROPER TEMPERATURE, HUMIDITY OR OTHER ENVIRONMENTAL CONDITIONS; OR (VIII) WHICH, BASED ON Emtek EXAMINATION, DO NOT DISCLOSE TO Emtek SATISFACTION NON-CONFORMANCE TO THE WARRANTY. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to the use of paints, solvents or other chemicals.

Finish Warranty: Polished Brass-Lifetime, Polished Nickel-Lifetime and Satin Brass Stainless Steel-Lifetime finishes carry a lifetime limited finish warranty. There is no finish warranty on Deep Burgundy, Flat Black Patina, Medium Bronze Patina, Polished White Bronze, Rust, Silver Patina, Tumbled White Bronze, and Unlacquered Brass finishes. All other finishes carry a five-year finish warranty.

Warranty claims: Please contact the retailer from whom the defective product was purchased. If assistance is needed, please contact Emtek Customer Service

F13.3349.US10B

Download

Emtek-F20-Mortise-install-guide

Emtek Installation Guide for F20 Mortise Lock set

Download (441.57KB)

Emtek-F13-Mortise-install-guide

Emtek Installation Guide for F13 Mortise Lock Set

Download (173.32KB)

LH-Door-prep-Emtek-mortisehandle

Left-Hand Door prep and boring guidelines for Emtek mortise entrance handlesets

Download (141.57KB)

RH-Door-prep-Emtek-mortisehandle

Right-Hand Door prep and boring guidelines for Emtek mortise entrance handlesets

Download (134.99KB)

Emtek-mortise-models

Emtek mortise models for door prep guides

Download (49.1KB)

Emtek-Dummy-Mortise-installguide

Emtek Installation Guide for Dummy Mortise Set

Download (194.49KB)

LH-Door-prep-Emtek-mortisedummy

Left-Hand Door prep and boring guidelines for Emtek mortise DUMMY handlesets

Download (53.37KB)

RH-Door-prep-Emtek-mortisedummy

Right-Hand Door prep and boring guidelines for Emtek mortise DUMMY handlesets

Download (53.76KB)

Emtek-mortise-box-functions

Guide to Emtek F13 and F20 mortise box functionality

Download (106.09KB)

Emtek-mortise-box-spec

Emtek Mortise Lock Box Technical Specifications

Download (834.47KB)

Emtek-spec-mortise-cyl-stk-fp

Technical Specifiations for Emtek Mortise Cylinders, Faceplate, and Strikeplates

Download (960.94KB)
